Technical Specifications
|
Item |

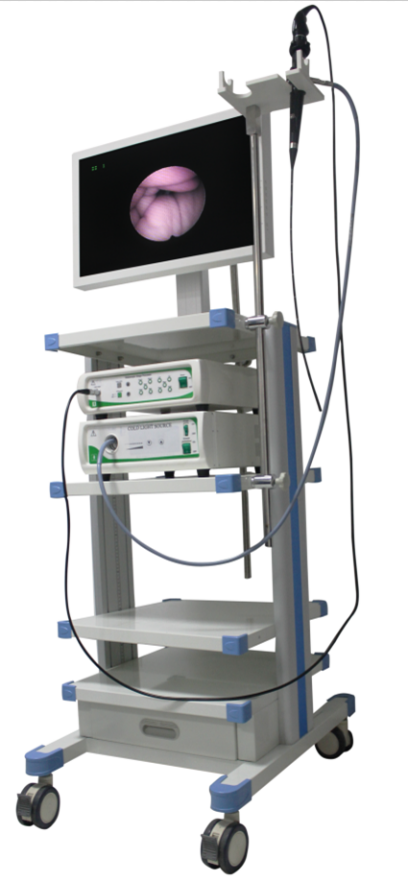

Fiber Nasopharyngoscope |
|
Diameter of Distal-end |
Φ5.0mm |
|
Diameter of Insert Tube |
Φ5.0mm |
|
Clamp Aperture |
Φ2.0mm |
|
Working Length |
380mm |
|
Total Length |
680mm |
|
View of Field |
90 º |
|
Depth of View |
3-50mm |
|
Tip Deflection |
up 180° down 130° |
Detailed Parameters
1 GBS-9 Fiber Nasopharyngoscope
- Bending operation: Traction chain structure, whole sealed waterproof.
- Image display: Two image display optional.
- Package size :64*18*48cm (G.W.: 5.0kgs).
2 LG-400 Light Cold Source Machine
|
PARAMETER |
SPECIFICATION |
|
Voltage |
220V-240V |
|
Frequency |
50-60HZ |
|
Lamp Power |
300W environmentally friendly halogen tungsten lamp |
|
Illumination |
180000LX (using special measuring tools) |
|
Color Temperature |
3000~7000K |
|
Air Pump Pressure |
30-60kpa |
|
Main Function |
Adopt Philips Medical environmentally friendly halogen bulb light, medium cold reflector irradiation. |
|
Built with micro axial fan cooling temperature. |
|
|
Adopt dimming electronic control unit organization. |
|
|
Dual-lamp light sources, the lamp can be freely exchanged in order to extend lamp life, convenience to the operation |
|
|
Package Box |
54*47*27.3cm (10.54kgs) |
3 EMV-3000 Camera System
|
PARAMETER |
SPECIFICATION |
|
Voltage |
1. Voltage: 220-240V |
|
Frequency |
2. Frequency: 50-60HZ |
|
System |
PAL |
|
Image Regulation |
Automatic regulate light, keep the image EMVat its best |
|
Video Processor |
DSP-Digital image processor with powerful multi-function , Brightness / color / contrast adjustable 0-100 level , Svideo / AV output. |
|
Reverse Function |
Black and white reversed. |
|
White Balance |
Auto white balance , manual white balance. |
|
Manual White Balance |
Manual white balance can be calibrated color, color adjustable (Red, Blue). |
|
Electronic Shutter |
10 level electronic shutter adjustment. |
|
Metering |
Average metering, peak metering, metering area delineated. |
|
Contour Enhancement |
10-level contour enhancement. |
|
Lens Optional |
Manual lens, automatic lens, video lens three optional. |
|
Sharpness Adjustment |
0-30 sharp changes of the image in fine processing. |
|
Digital |
Digital broadband function. |
|
Backlight Compensation |
Improve the average brightness of the whole screen |
|
Cama Line |
Cama line clarity 6 level adjustment. |
|
R/L Mirroring |
The left and right mirror position can be changing. |
|
Package Size |
50.5*46*20cm (G.W.:8.5kgs) |
4 LCD Display
1. Display size: 15"
2. Power Supply:External Power Supply 12V
3. Resolution:1024X768
4. Display Ratio:4:3
5. Color:16.7M
6. Camoration Brightness:180±10 cd/m2
7. Max.Brightness:400 cd/m2
8. Contrast Ratio:700 : 1
9. Viewing Angle:120/140 Response Tim:8ms
Package size: 44*36.5*16.5cm (G.W.:6.0kgs)
5 Equipment Vehicles
Size : 500 * 700 *1350mm
Package size:118.5*63.5*22cm (G.W.:44.5kgs)
